Oil/Water Separators

Different by being better — simple, elegant design with no moving parts, covering 75 cfm to 7,000 cfm.

Design Philosophy

Easy to install. Totally reliable.

STELSEP separators feature an elegant, simple design — no gravity pre-separation stage, no separate oil container to empty, and no moving parts or adjustments. Special filter media handles the separation reliably and efficiently.

Lightweight, dust-free filters — twice as long-lasting as activated carbon alternatives
No gravity pre-separation required — a simpler, more compact installation
Minimal floor space — wall or floor mountable across the range
Quick, easy servicing — cartridge-type packs, no mess, no specialist tools

CS75 Brochure CS75 I&M Guide

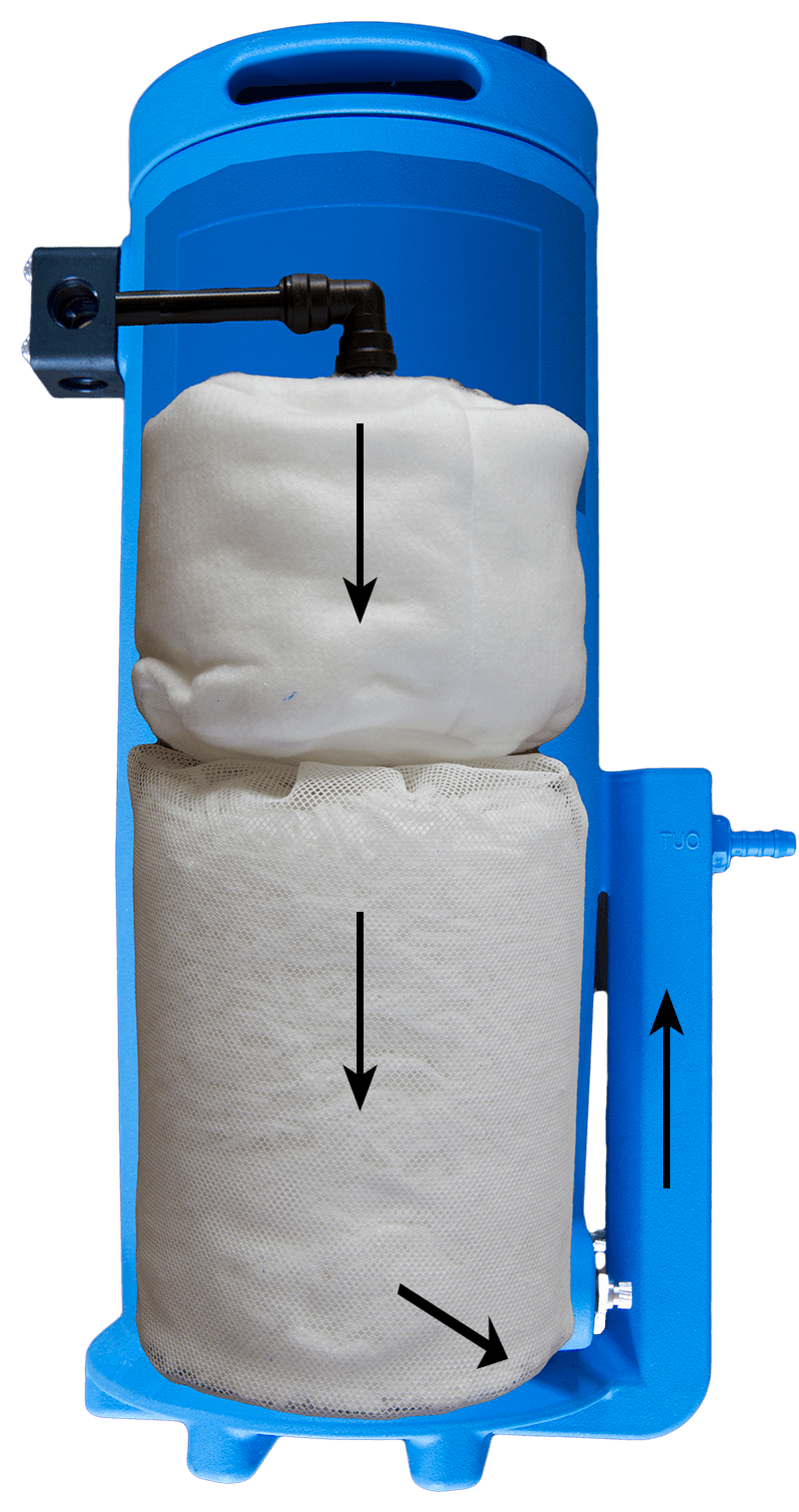

Cutaway view of STELSEP oil/water separator showing internal filter media

Cutaway showing the filter media arrangement — no moving parts, no oil containers

Up to 75 cfm / 2.1 m³/min

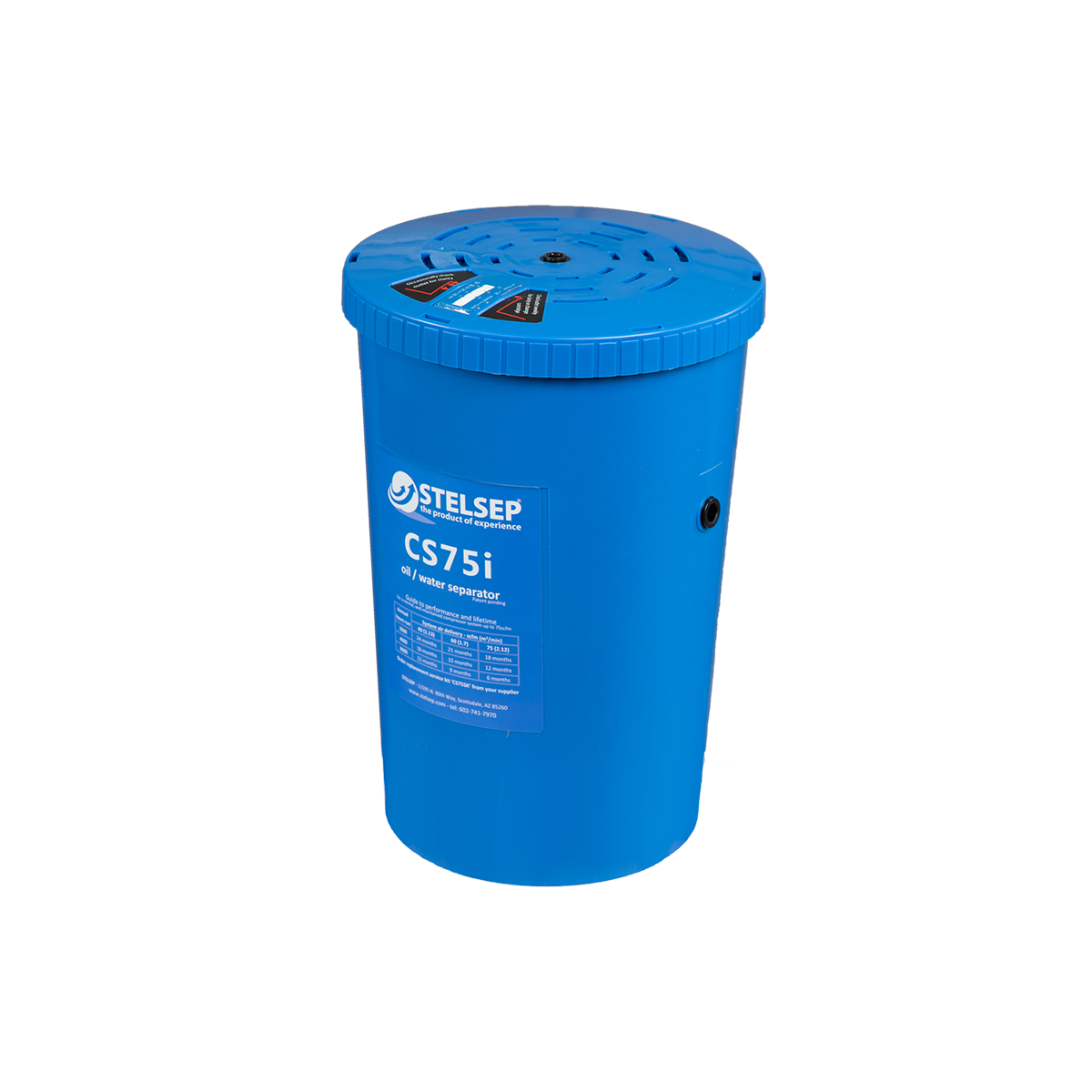

CS75 Separator

The world's smallest and lowest cost oil/water separator that has a replaceable cartridge-type service pack — the CS75 handles condensate from any 15 hp compressor, making it the ideal entry-level solution.

Key Features

Handles condensate from any 15 hp compressor
Cartridge replacement every 4,000 hours
Push-in connectors as standard
Wall or floor mountable
Minimal footprint

CS75 Brochure Installation & Maintenance Watch Video

150 – 3,000 cfm / 4.2 – 84 m³/min

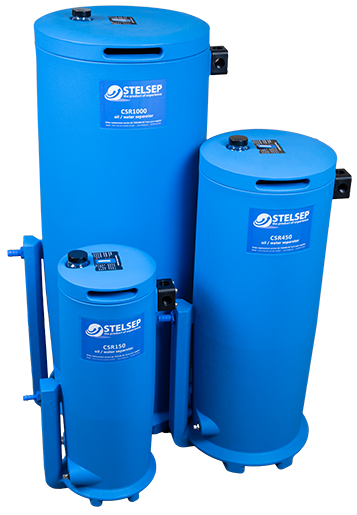

CSR Range

The CSR range covers the mid-to-large compressor market with models from the CSR150 through to the CSR3000. Like all STELSEP products, the CSR range is easy to install and use, and totally reliable in operation.

What's included

CSR150 through CSR3000 models
No gravity separation stage
No separate oil container to empty

For larger systems

CSEQ3 splitter for systems over 1,000 cfm
Balances flow across parallel units
Scales to any installation

Enquire About CSR Range

3,500 & 7,000 cfm / 100 & 200 m³/min

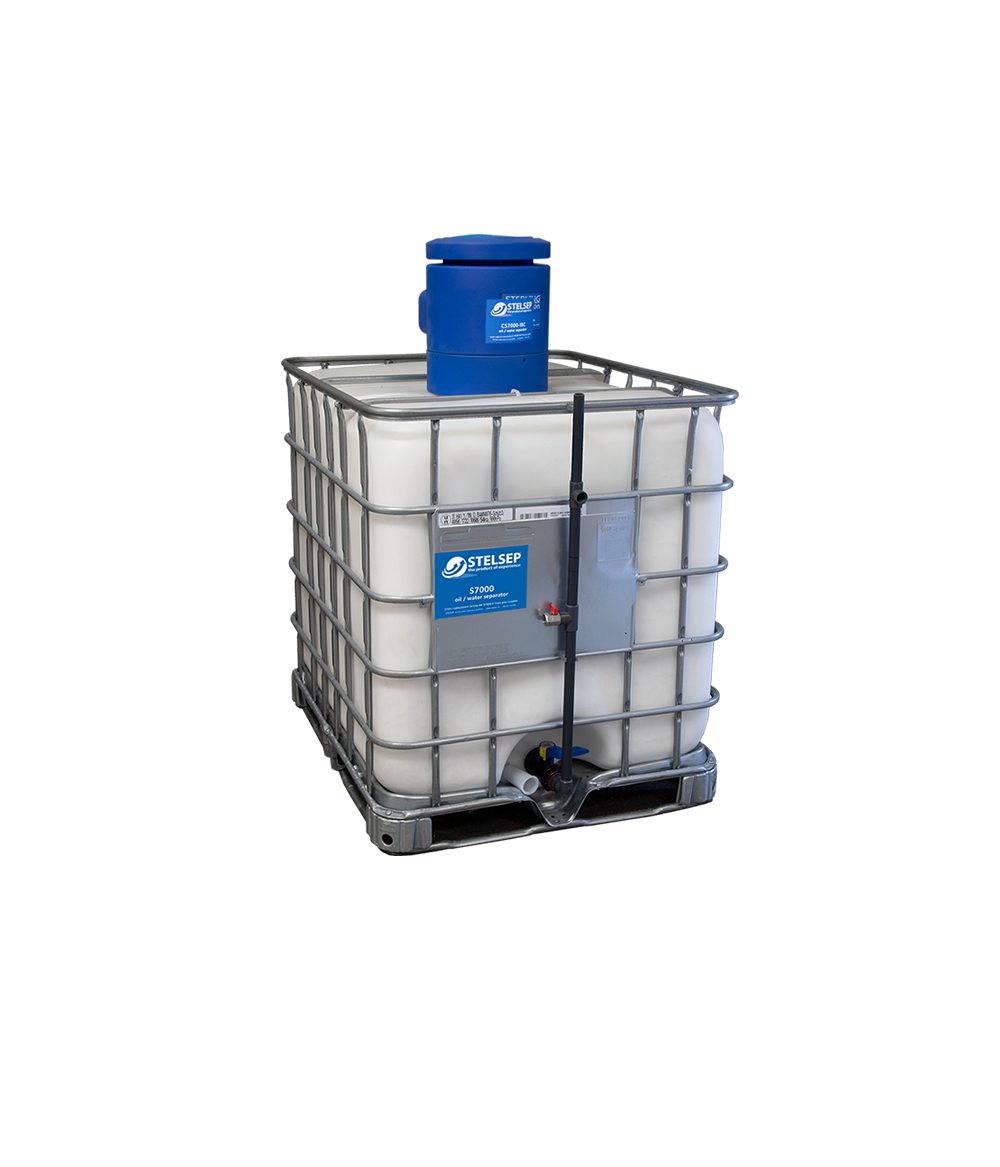

IBC Separators — CS100 & CS200

For large multi-compressor systems, the IBC-based CS100 (3,500 cfm) and CS200 (7,000 cfm) separators offer class-leading capacity with outstanding cost-effectiveness per cfm treated.

Service periods up to 16,000 hours
One filter disposal per two-year period
Dramatically reduced service cost

CS100 — 3,500 cfm / 100 m³/min
CS200 — 7,000 cfm / 200 m³/min
Cost-effective for large-scale applications

Enquire About IBC Range

Special Solutions

Emulsified Condensate?

Some compressors — typically those using synthetic lubricants or operating at high humidity — produce emulsified condensate that standard media cannot adequately treat. STELSEP has a solution.

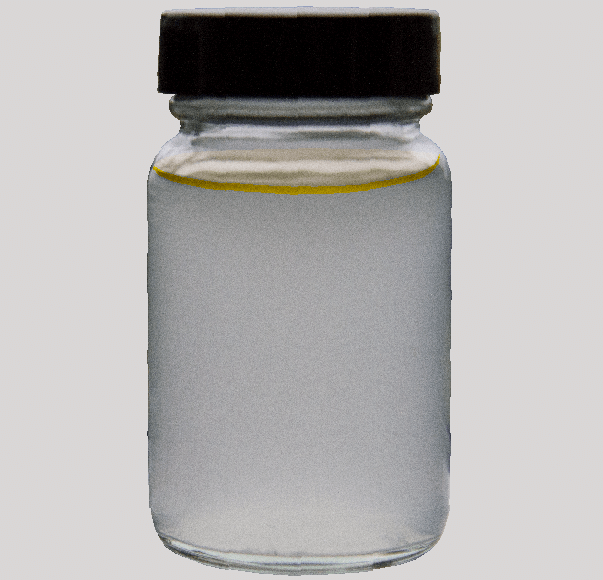

Normal condensate — standard separator handles this effectively

AF Upgrade Available

Where emulsified condensate is an issue, STELSEP offers an AF (anti-foam / anti-emulsion) upgrade for the separator range — contact us to discuss your specific application.

Discuss AF Upgrade

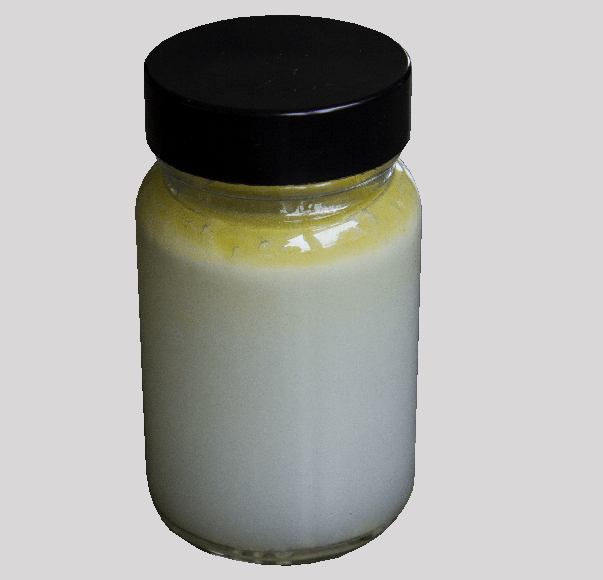

Emulsified condensate — AF upgrade ensures effective treatment

Documentation

Download product brochures and installation guides for the CS75. For the full range of documentation, visit the Downloads page.

CS75 Brochure CS75 I&M All Downloads
